Glyph plots for tf objects

Source: R/geom-capellini.R
ggcapellini.Rd

Plots a miniature glyph / sparkline for each entry of a tf-object. (Capellini are tiny spaghetti – angel hair pasta.) Aesthetics x and y specify the location of the glyphs, the tf aesthetic defines their shapes. The aliases geom_cappelini, geom_cappellini, and geom_capelini are also accepted.

Usage

stat_capellini(
  mapping = NULL,
  data = NULL,
  geom = "capellini",
  position = "identity",
  na.rm = TRUE,
  show.legend = NA,
  inherit.aes = TRUE,
  arg = NULL,
  add_lines = FALSE,
  add_boxes = TRUE,
  width = NULL,
  height = NULL,
  ...
)

geom_capellini(
  mapping = NULL,
  data = NULL,
  stat = "capellini",
  position = "identity",
  ...,
  na.rm = TRUE,
  show.legend = NA,
  inherit.aes = TRUE,
  arg = NULL,
  add_lines = TRUE,
  add_boxes = TRUE,
  width = NULL,
  height = NULL,
  box.colour = "#0000001A",
  box.linetype = 1,
  box.fill = NA,
  box.linewidth = 0.1,
  box.alpha = 0.1,
  line.colour = "black",
  line.linetype = 2,
  line.linewidth = 0.3,
  line.alpha = 0.5
)

Arguments

mapping

Set of aesthetic mappings created by aes(). If specified and inherit.aes = TRUE (the default), it is combined with the default mapping at the top level of the plot. You must supply mapping if there is no plot mapping.

data

The data to be displayed in this layer. There are three options:

If NULL, the default, the data is inherited from the plot data as specified in the call to ggplot().

A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame. See fortify() for which variables will be created.

A function will be called with a single argument, the plot data. The return value must be a data.frame, and will be used as the layer data. A function can be created from a formula (e.g. ~ head(.x, 10)).

geom

The geometric object to use to display the data for this layer. When using a stat_*() function to construct a layer, the geom argument can be used to override the default coupling between stats and geoms. The geom argument accepts the following:

  • A Geom ggproto subclass, for example GeomPoint.

  • A string naming the geom. To give the geom as a string, strip the function name of the geom_ prefix. For example, to use geom_point(), give the geom as "point".

  • For more information and other ways to specify the geom, see the layer geom documentation.

position

A position adjustment to use on the data for this layer. This can be used in various ways, including to prevent overplotting and improving the display. The position argument accepts the following:

  • The result of calling a position function, such as position_jitter(). This method allows for passing extra arguments to the position.

  • A string naming the position adjustment. To give the position as a string, strip the function name of the position_ prefix. For example, to use position_jitter(), give the position as "jitter".

  • For more information and other ways to specify the position, see the layer position documentation.

na.rm

remove NAs? defaults to TRUE

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes. It can also be a named logical vector to finely select the aesthetics to display. To include legend keys for all levels, even when no data exists, use TRUE. If NA, all levels are shown in legend, but unobserved levels are omitted.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. annotation_borders().

arg

where to evaluate tf; defaults to the object's default evaluation grid.

add_lines

should a reference line in the middle of the range of the functions' values be added to each glyph? defaults to TRUE

add_boxes

should a box be added to frame each glyph? defaults to TRUE

width

the width of the glyphs. Defaults to 2/3 of the ggplot2::resolution() of the variable for the x-aesthetic, this will be too small if any values are close together.

height

the height of the glyphs. Defaults to 2/3 of the ggplot2::resolution() of the variable for the y-aesthetic, this will be too small if any values are close together.

...

Other arguments passed on to layer()'s params argument. These arguments broadly fall into one of 4 categories below. Notably, further arguments to the position argument, or aesthetics that are required can not be passed through .... Unknown arguments that are not part of the 4 categories below are ignored.

  • Static aesthetics that are not mapped to a scale, but are at a fixed value and apply to the layer as a whole. For example, colour = "red" or linewidth = 3. The geom's documentation has an Aesthetics section that lists the available options. The 'required' aesthetics cannot be passed on to the params. Please note that while passing unmapped aesthetics as vectors is technically possible, the order and required length is not guaranteed to be parallel to the input data.

  • When constructing a layer using a stat_*() function, the ... argument can be used to pass on parameters to the geom part of the layer. An example of this is stat_density(geom = "area", outline.type = "both"). The geom's documentation lists which parameters it can accept.

  • Inversely, when constructing a layer using a geom_*() function, the ... argument can be used to pass on parameters to the stat part of the layer. An example of this is geom_area(stat = "density", adjust = 0.5). The stat's documentation lists which parameters it can accept.

  • The key_glyph argument of layer() may also be passed on through .... This can be one of the functions described as key glyphs, to change the display of the layer in the legend.

stat

the stat to use; defaults to "capellini".

box.colour

aesthetic property of the box

box.linetype

aesthetic property of the box

box.fill

aesthetic property of the box

box.linewidth

aesthetic property of the box

box.alpha

aesthetic property of the box

line.colour

aesthetic property of the reference line

line.linetype

aesthetic property of the reference line

line.linewidth

aesthetic property of the reference line

line.alpha

aesthetic property of the reference line

Value

A ggplot2::layer() object for use in a ggplot.

tf aesthetic

Mandatory. Used to designate a column of class tf to be visualized as glyphs.

See also

GGally::glyphs()

Other tidyfun visualization: autoplot.tf(), gglasagna(), ggspaghetti

Examples

library(ggplot2)
weather <- fda::CanadianWeather
canada <- data.frame(
  place = weather$place,
  region = weather$region,
  lat = weather$coordinates[, 1],
  lon = -weather$coordinates[, 2],
  region = weather$region
)
canada$temp <- tfd(t(weather$dailyAv[, , 1]), arg = 1:365)
canada$precipl10 <- tfd(t(weather$dailyAv[, , 3]), arg = 1:365) |> tf_smooth()
#> Using `f = 0.15` as smoother span for `lowess()`.
canada_map <-
  data.frame(maps::map("world", "Canada", plot = FALSE)[c("x", "y")])

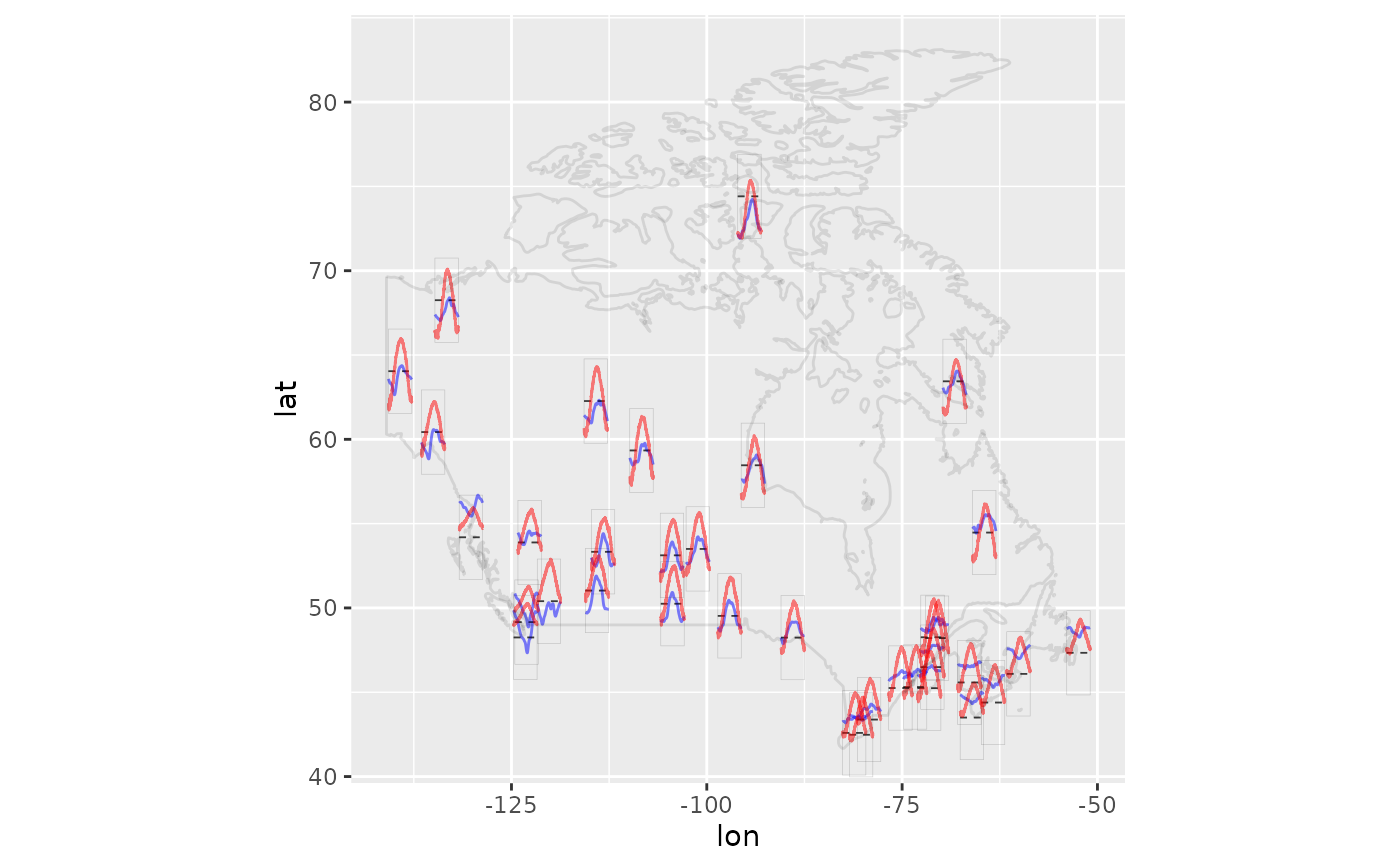

# map of canada with annual temperature averages in red, precipitation in blue:
ggplot(canada, aes(x = lon, y = lat)) +
  geom_capellini(aes(tf = precipl10), width = 3, height = 5, colour = "blue") +
  geom_capellini(aes(tf = temp), width = 3, height = 5, colour = "red") +
  geom_path(data = canada_map, aes(x = x, y = y), alpha = 0.1) +
  coord_quickmap()

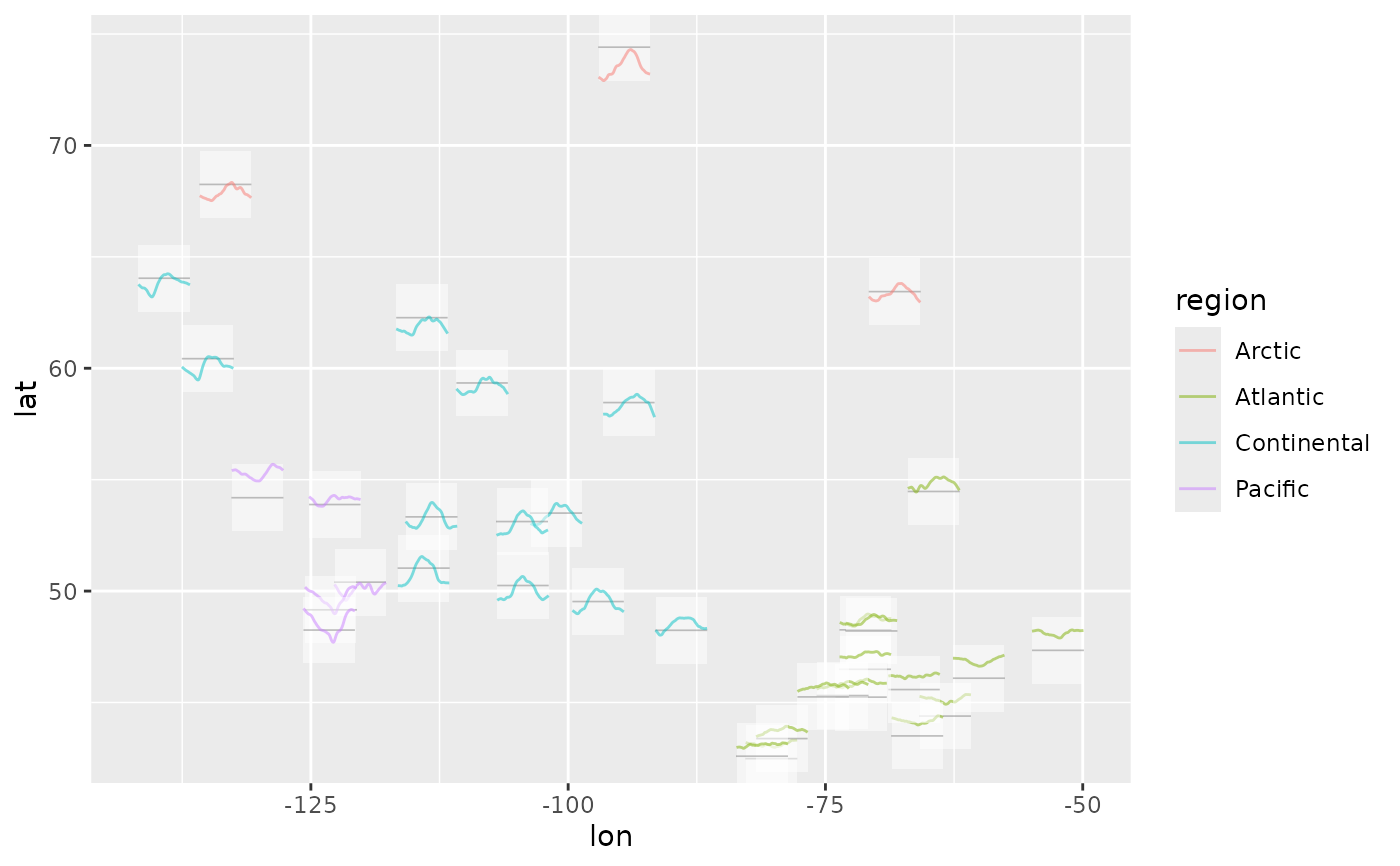

ggplot(canada, aes(x = lon, y = lat, colour = region)) +
  geom_capellini(aes(tf = precipl10),
    width = 5, height = 3,
    line.linetype = 1, box.fill = "white", box.alpha = 0.5, box.colour = NA
  )
